Enable port forwarding for the ASUS WL-330N3G

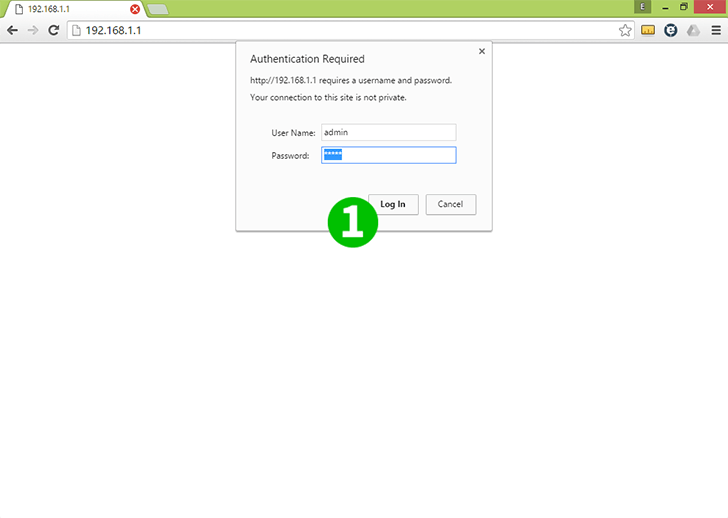

ASUS WL-330N3G Step 1

1
Login to your ASUS WL-330N3G with a username and password (default username/password = admin)

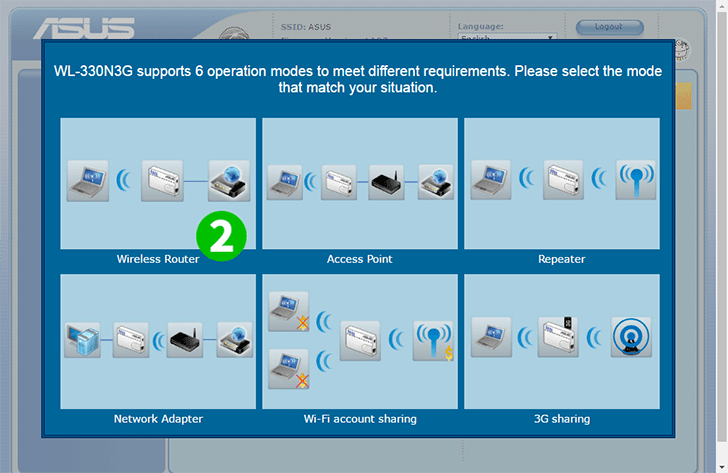

ASUS WL-330N3G Step 2

2
Select mode "Wireless Router"

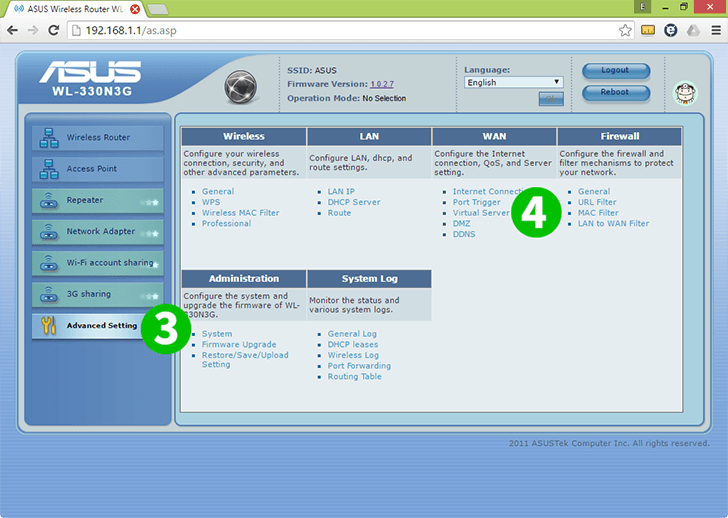

ASUS WL-330N3G Steps 3-4

3
Select "Advanced Settings" on the left menu

4
Under a "WAN" section select the menu "Virtual Server"

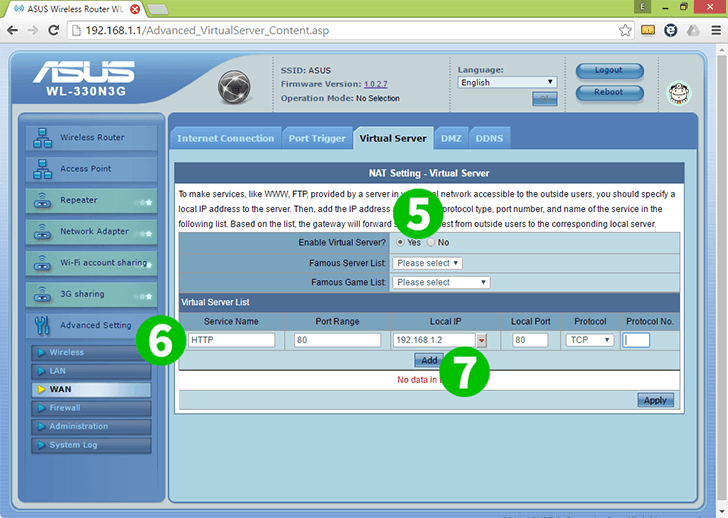

ASUS WL-330N3G Steps 5-7

5
Under "Vitual Server" tab, "Enable Virtual Server?" select "Yes"

6
Under "Virtual Server List" enter

Service Name: HTTP
Source IP:
Port Range: 80
Local IP: The IP of the computer cFos Personal Net is running on
Local Port: 80
Protocol: TCP

7
Press the "Add" button to add the rule

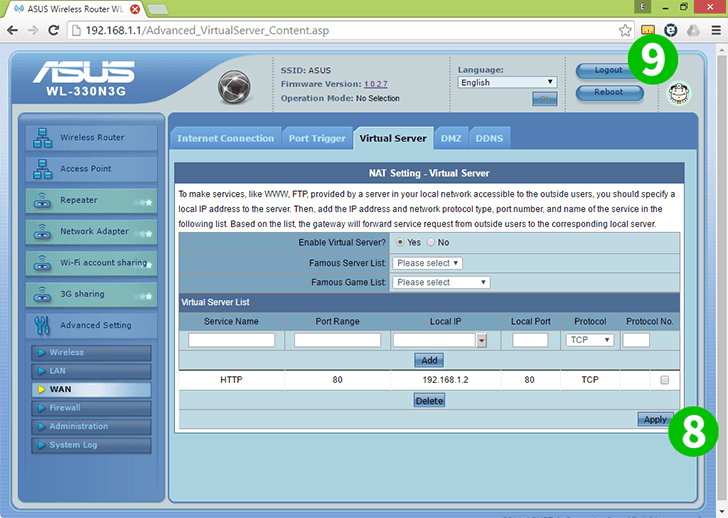

ASUS WL-330N3G Steps 8-9

8
Press "Apply" button to save the rule

9
On the top of the screen, press "Logout" to sign out from the router



Port forwarding is now configured for your computer!
