» Enable port forwarding for the Dasan H640W

Enable port forwarding for the Dasan H640W

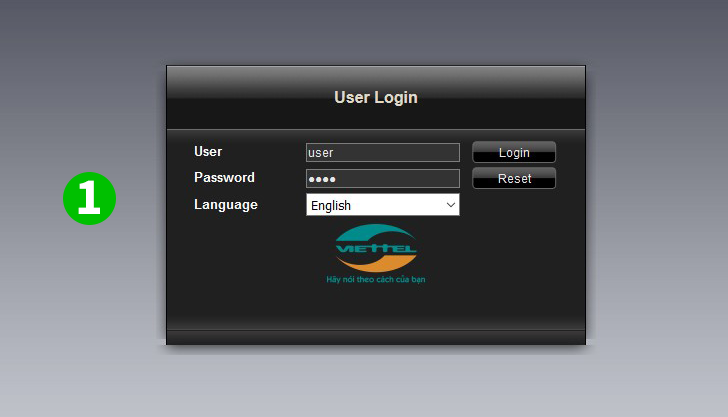

Dasan H640W Step 1

1
Log into your router with your username and password (default username: user , default password: /user)

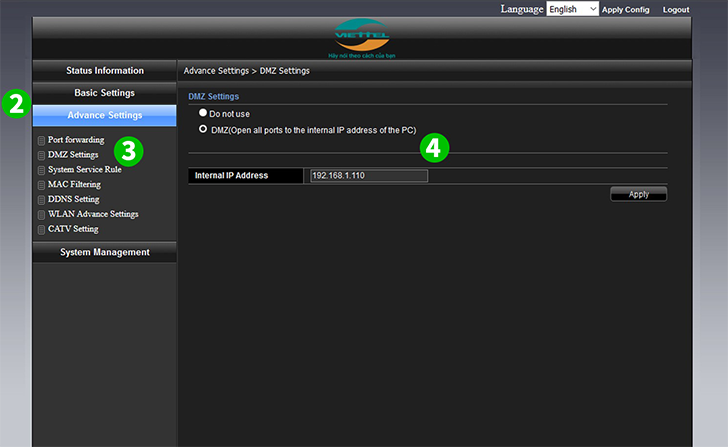

Dasan H640W Steps 2-4

2
Click on "Advance Settings"

3
Click on "DMZ Settings"

4
Click on "DMZ (Open all ports to the internal IP of the PC)" and type your Internal IP Address, then click on "Apply"

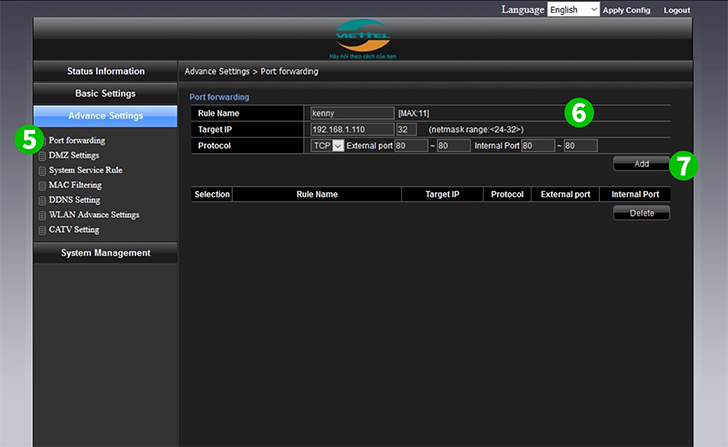

Dasan H640W Steps 5-7

5
Click on "Port forwarding"

6
Fill out the entry fields:

Rule Name: you can put anything you want
Target IP: The IP address of the computer you are using
Netmask range: type 32
Protocol: TCP
External port: 80
Internal port: 80

7
Click on "Apply"



Port forwarding is now configured for your computer!
