Enable port forwarding for the Huawei WS319

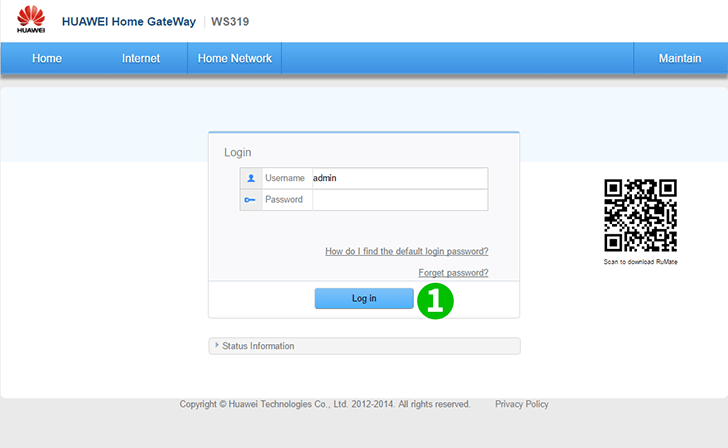

Huawei WS319 Step 1

1
Log into your HUAWEI WS319 with your username and password

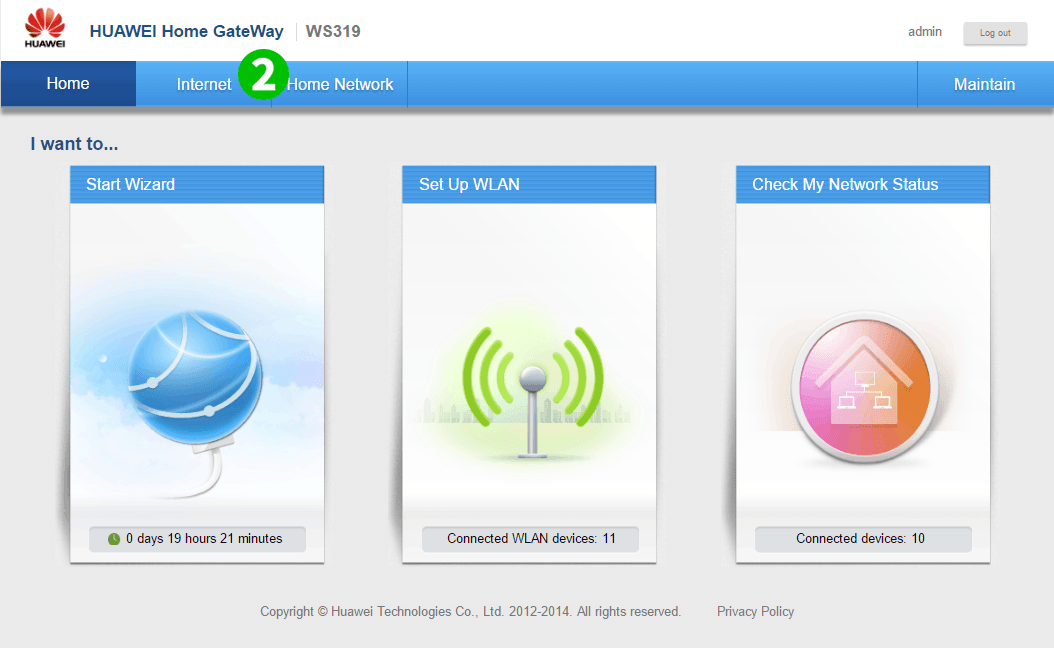

Huawei WS319 Step 2

2
Click on "Internet" in the main menu tab on the top

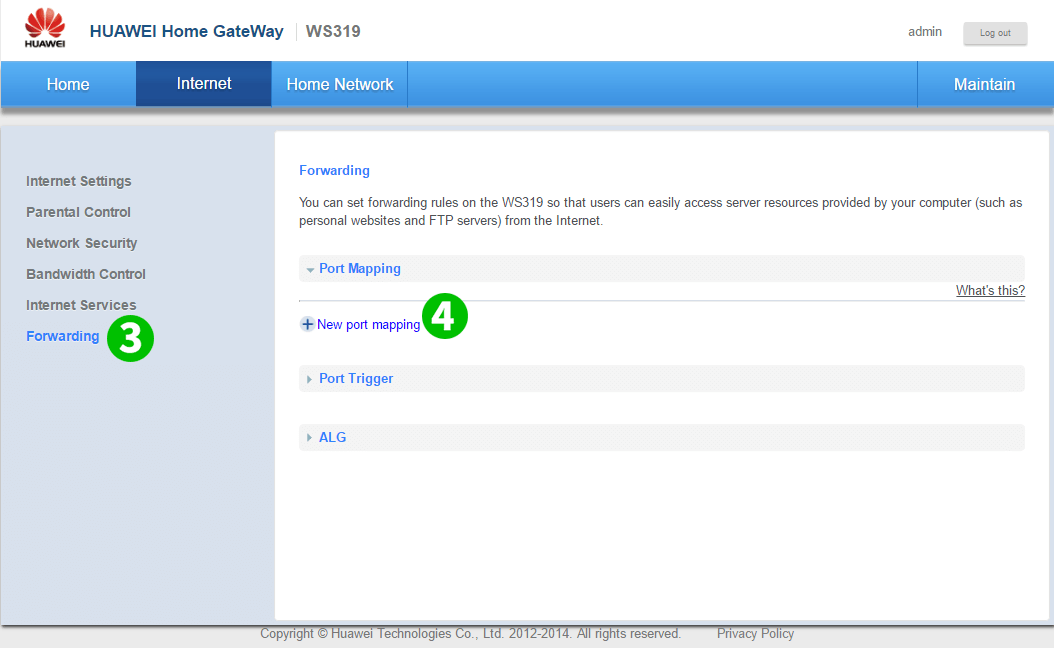

Huawei WS319 Steps 3-4

3
Click on the tab labelled "Forwarding"

4
Click on the "New port mapping"

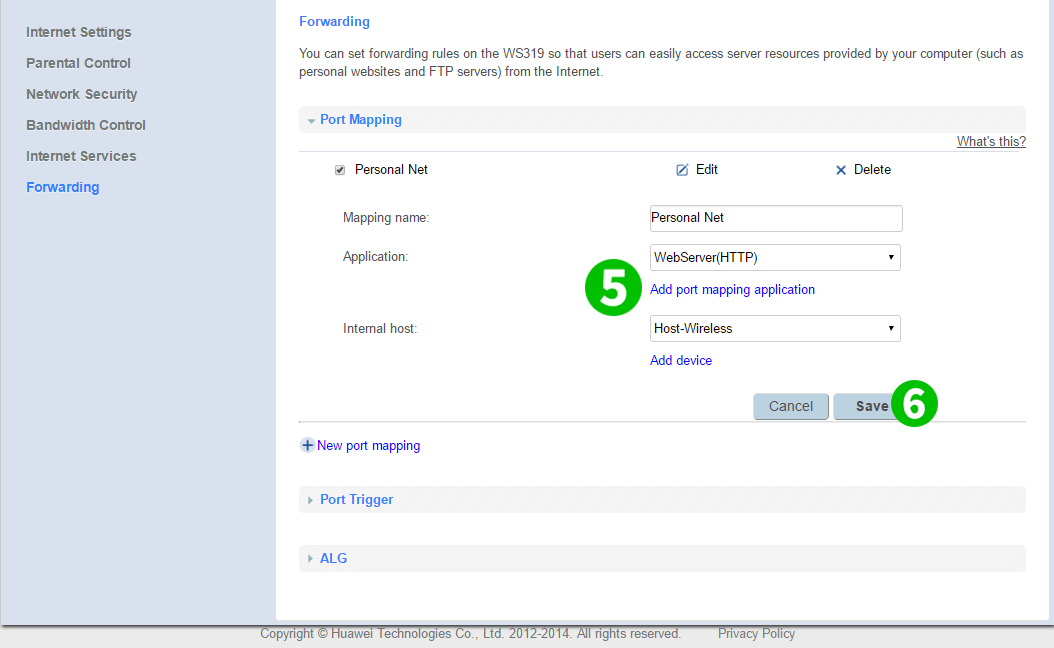

Huawei WS319 Steps 5-6

5
Fill "Mapping name" with your desired name, select "WebServer(HTTP)" in "Application", then select the computer cFos Personal Net is running on from the option lists

6
Click on "Save"

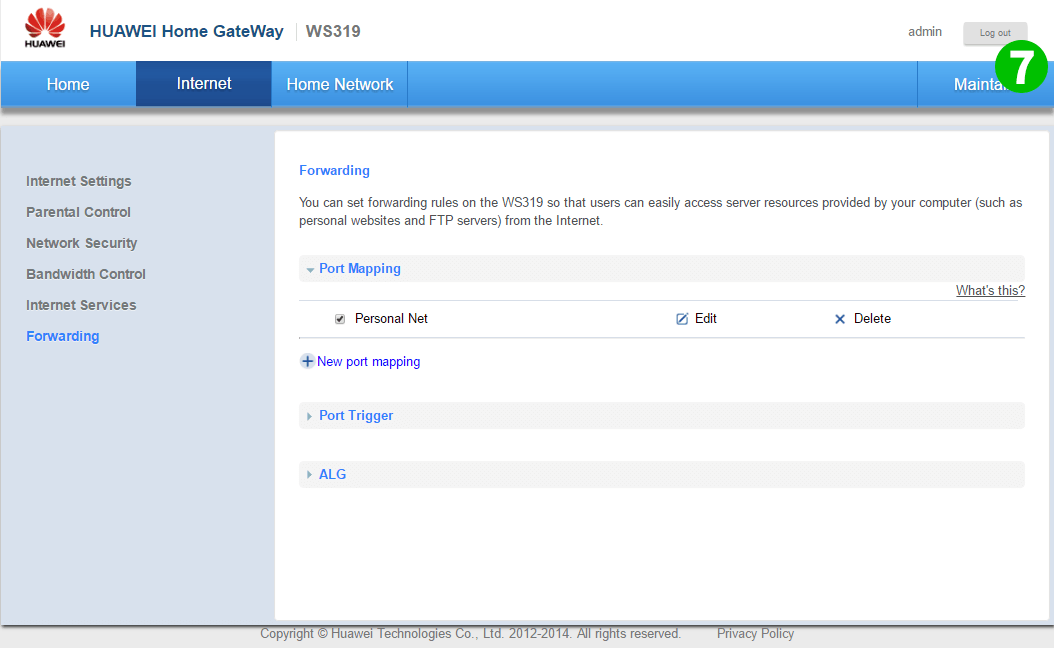

Huawei WS319 Step 7

7
Log out of your router by clicking on "Logout" at the top of the page



Port forwarding is now configured for your computer!
