Enable port forwarding for the Netgear JWNR2010


Netgear JWNR2010 Step 1

1
Go to 192.168.1.1 from your favorite browser and enter your router username and password (default username : admin , Password : password)



Netgear JWNR2010 Steps 2-4

2
Select the "Advanced" tab from the top

3
After selecting "Advanced Setup" You’ll see "Port Forwarding / Port Triggering"

4
Select "Port Forwarding / Port Triggering". "Port Forwarding" radio button will be selected by default. If it is not, select it

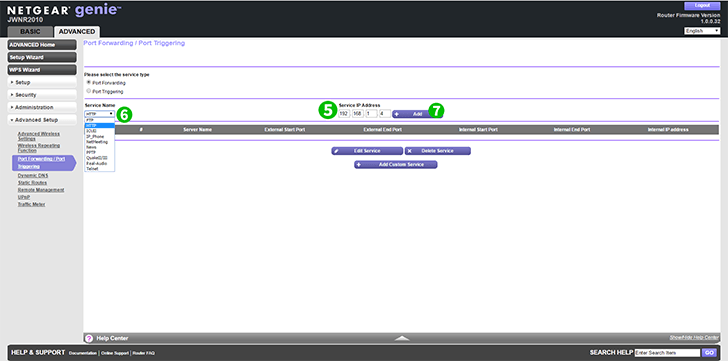

Netgear JWNR2010 Steps 5-7

5
Enter the IP address of the PC where cFos Personal Net is running.

6
Now Select "HTTP" Service name from the drop down menu

7
Press "Add"



Netgear JWNR2010 Steps 8-9

8
If you do everything perfectly you’ll see a new line

9
If you want to edit these settings in the future select the radio button and click "Edit service"



Netgear JWNR2010 Steps 10-11

10
You can edit any of these settings any time you want

11
After changing select "Apply"



Port forwarding is now configured for your computer!
