Enable port forwarding for the Tenda FH1202


The following guide is intended for the latest official firmware Chinese version ( US_FH1202V1.0BR_V1.2.0.20(408)_CN_TD.bin ).

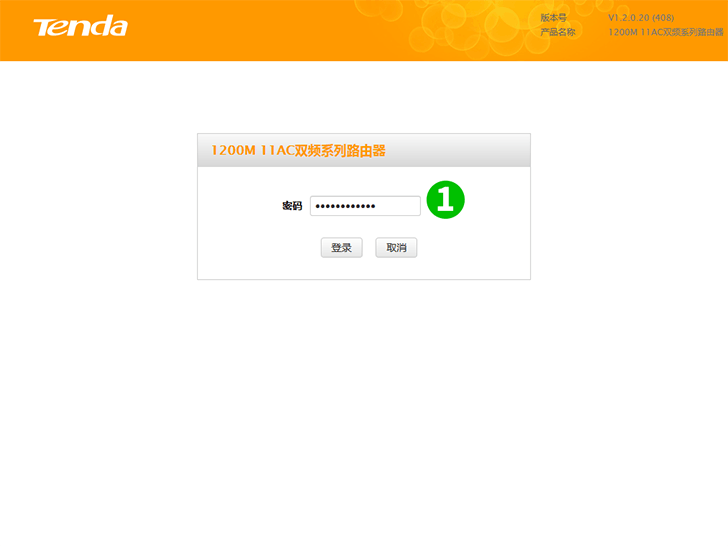

Tenda FH1202 Step 1

1
Log into your router with your password (default IP: 192.168.0.1 - skip to step 2 if you never set the router password before)

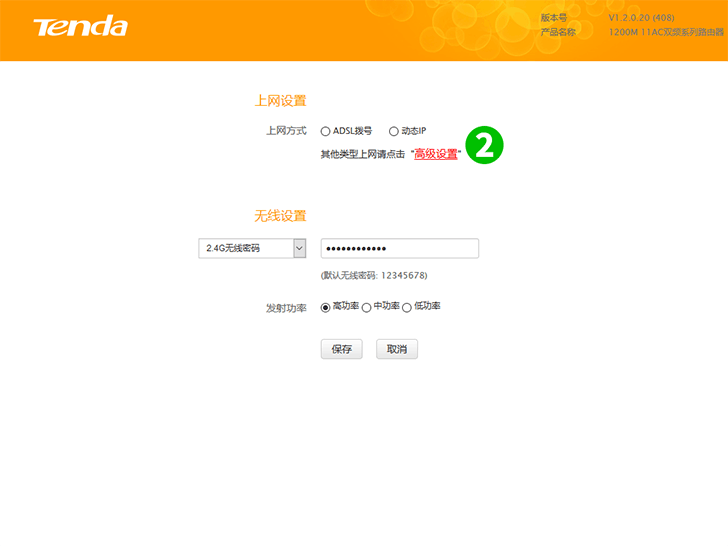

Tenda FH1202 Step 2

2
Click on the "高级设置" (Advanced Settings) text

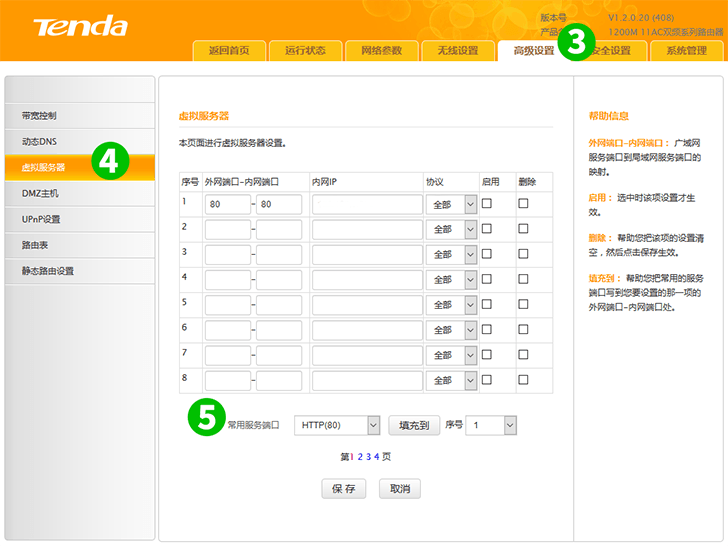

Tenda FH1202 Steps 3-5

3
Click on the "高级设置" (Advanced Settings) button in the main menu bar on the top

4
Click on "虚拟服务器" (Virtual Servers) in the menu on the left

5
Select "HTTP(80)" from the drop-down and Click the "填充到"(Fill-in) button to fill the External port and Internal port in line 1

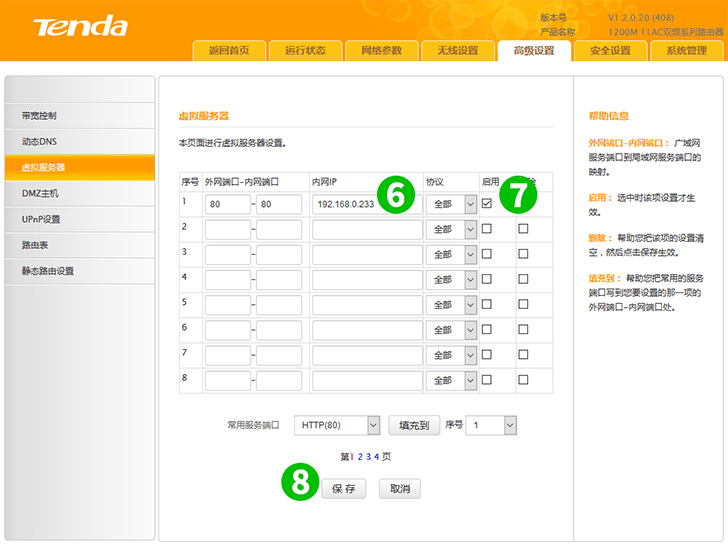

Tenda FH1202 Steps 6-8

6
Enter the IP of the computer cFos Personal Net is running on in the "内网IP" (LAN IP Address) field

7
Tick "启用" (Enable) to enable port forwarding

8
Click on the "保存" (Save) button

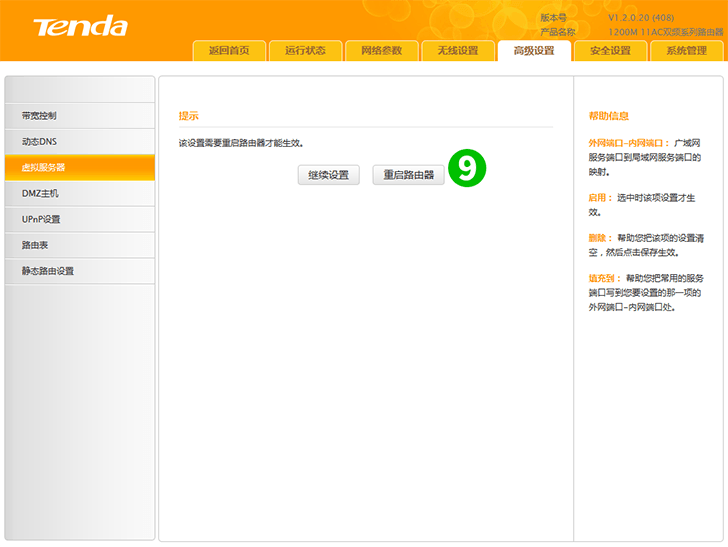

Tenda FH1202 Step 9

9
Click on the "重启路由器" (Reboot router) button



Port forwarding is now configured for your computer!
