Enable port forwarding for the TP-LINK TL-WR1043ND


These instructions are meant for the latest firmware of the TL-WR-1043ND, but should be valid for prior versions, too. The firmware version TL-WR1043ND_V1_140319 can be downloaded here .

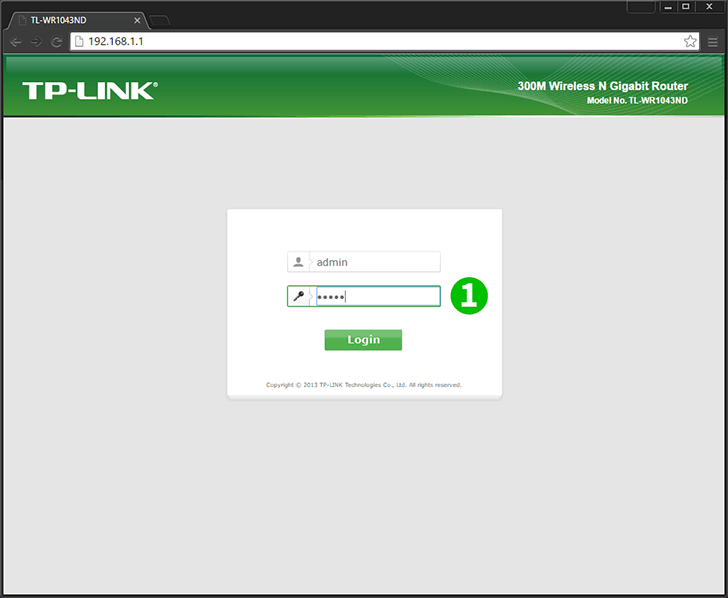

TP-Link TL-WR1043ND Step 1

1
Log into your router with your username and password (default IP: 192.168.0.1 - default username/password: admin)

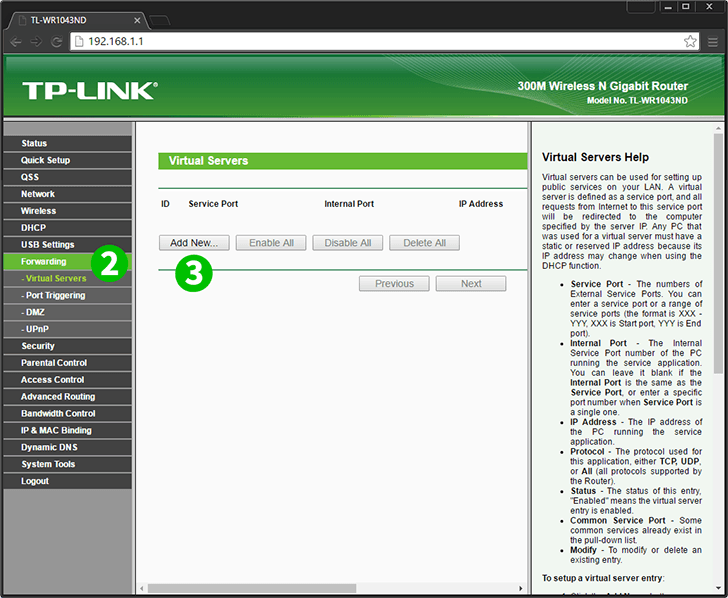

TP-Link TL-WR1043ND Steps 2-3

2
Click on "Forwarding" and "Virtual Servers" in the main menu on the left

3
Click on the "Add New" button



TP-Link TL-WR1043ND Steps 4-6

4
Select "HTTP" as "Common Service port" and enter the (preferably static) IP of the computer cFos Personal Net is running on in the "IP Address" field

5
Click on the "Save" button

6
Log out of your router by clicking on "Logout" in the main menu on the left



Port forwarding is now configured for your computer!
