Enable port forwarding for the Zyxel Keenetic Giga

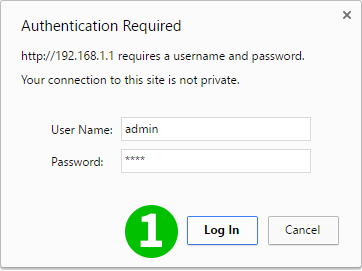

Zyxel Keenetic Giga Step 1

1
Log into your router with your username and password (default IP: 192.168.1.1 - default username/password: admin/1234)



Zyxel Keenetic Giga Steps 2-4

2
Select "Security" (shield icon) in bottom menu

3
Select "Address translation Rules (NAT)" tab

4
Click "Add Rule"

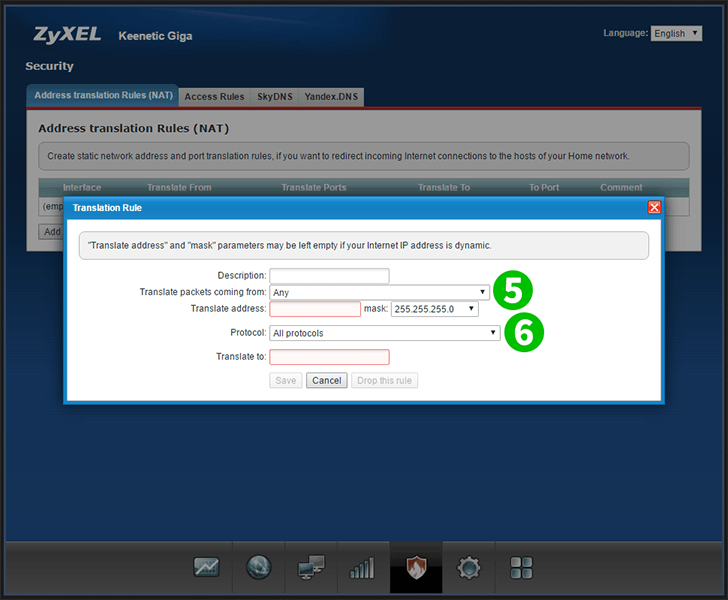

Zyxel Keenetic Giga Steps 5-6

5
Select Broadband Connection from the drop list (Note: if your type of connection is PPoE or L2TP you need to select the appropriate option from the drop list)

6
Select TCP from the drop list

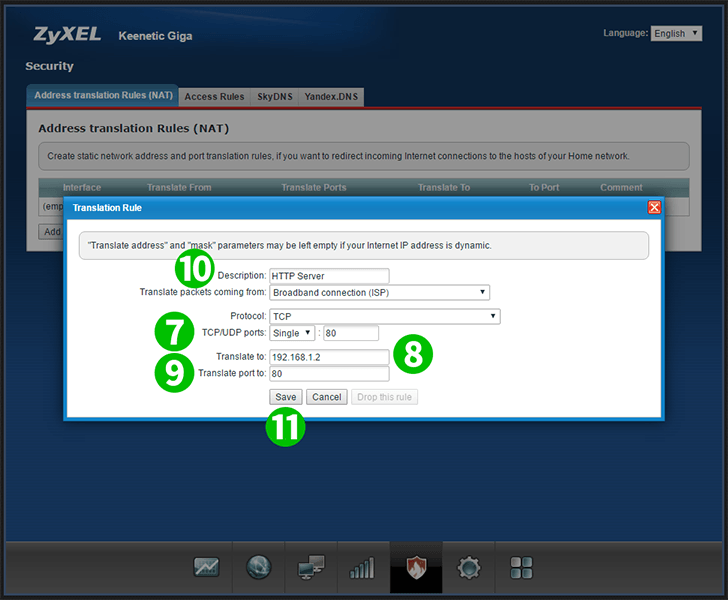

Zyxel Keenetic Giga Steps 7-11

7
Select Single. Enter 80 in the appropriate field

8
Enter the (preferably static) IP of the computer cFos Personal Net is running on in the "Translate to:" field

9
Enter 80 in the "Translate port to:" field

10
(Optional) Enter HTTP Server in "Description:" field

11
Click "Save"

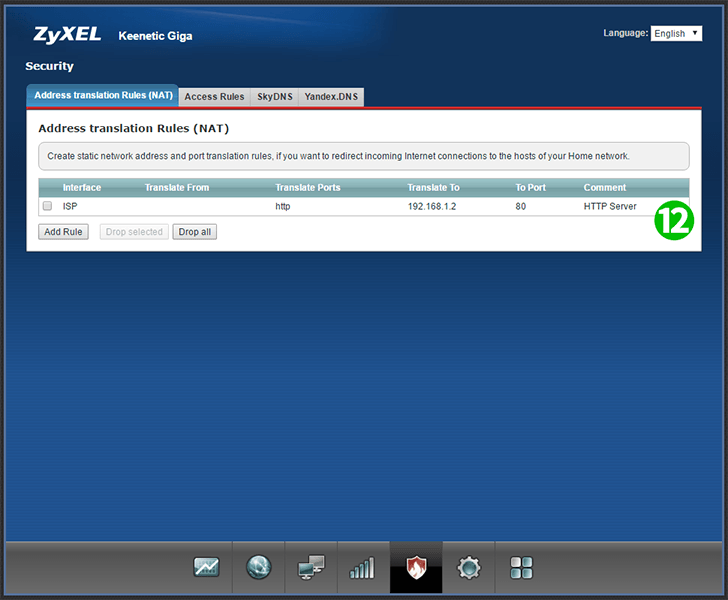

Zyxel Keenetic Giga Step 12

12
Port forwarding is now configured for your computer and you can log out of your Zyxel Keenetic Giga
