Enable port forwarding for the ASUS DSL-N12U_C1

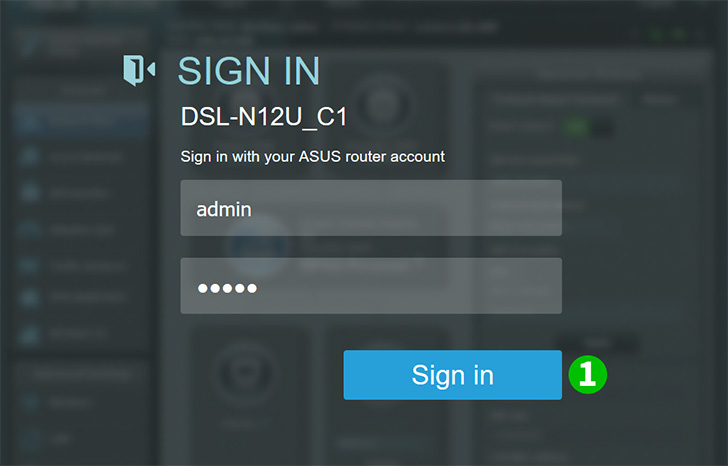

ASUS DSL-N12U_C1 Step 1

1
Log into your router with your username and password (default IP: 192.168.1.1 - default username/password: admin)

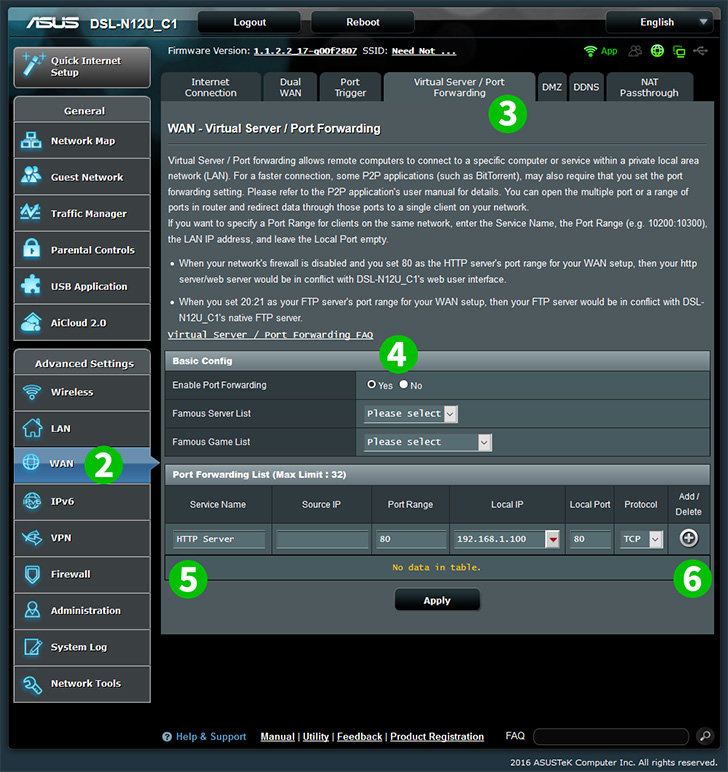

ASUS DSL-N12U_C1 Steps 2-6

2
Under a "Advanced Settings" on the left menu select "WAN"

3
Select the tab "Virtual Server / Port Forwarding" on the top of the page

4
Make sure to check under "Basic Config" that "Enable Port Forwarding" is enabled by clicking "Yes"

5
Under "Port Forwarding List" enter Service Name "HTTP Server", Port Range "80", Local IP "IP address of the computer cFos Personal Net is running on", Local Port "80" and Protocol "TCP"

6
Click the small "+" button on the right to add profile

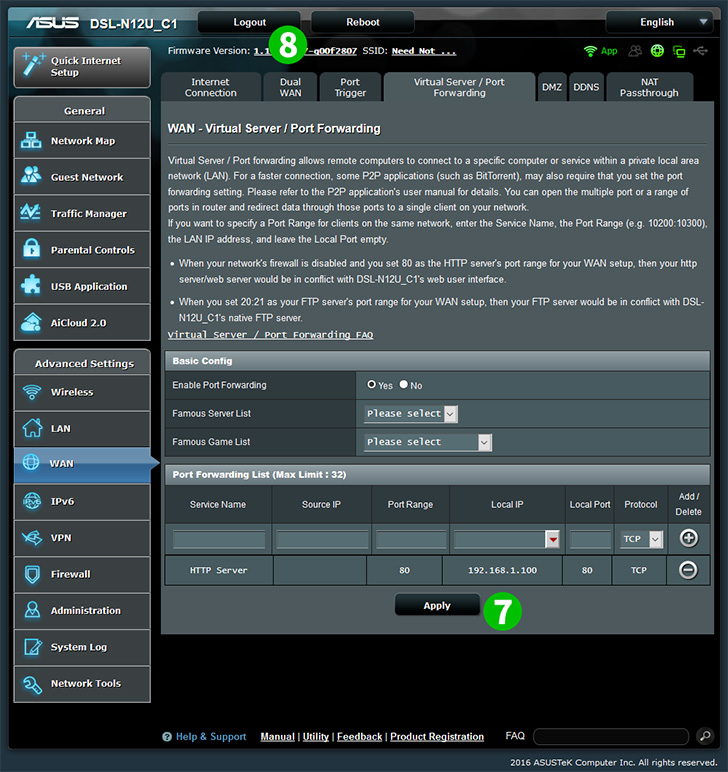

ASUS DSL-N12U_C1 Steps 7-8

7
Click on "Apply"

8
Log out of your router by clicking on "Logout" in the top of the screen



Port forwarding is now configured for your computer!
