Enable port forwarding for the ASUS DSL-N55U_C1

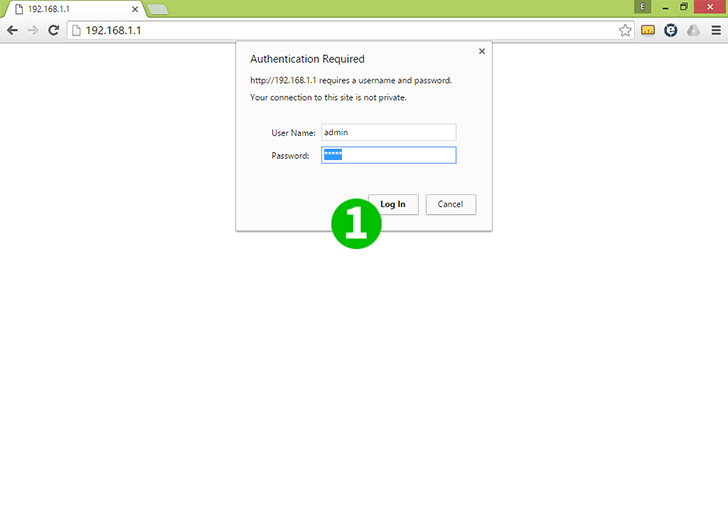

ASUS DSL-N55U_C1 Step 1

1
Login to your ASUS DSL-N55U_C1 with a username and password (default username/password = admin)

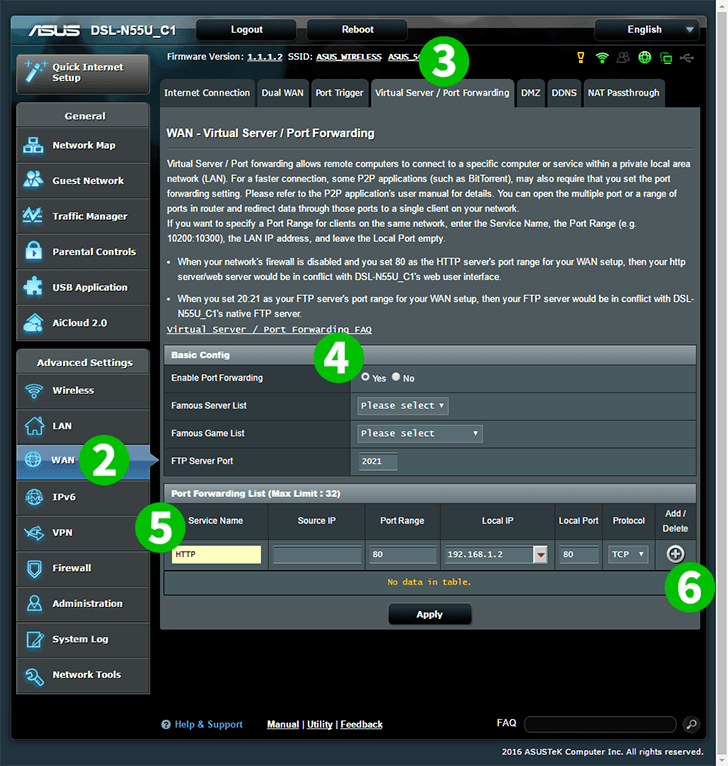

ASUS DSL-N55U_C1 Steps 2-6

2
Under a "Advanced Settings" select "WAN" on the left menu

3
Select the tab "Virtual Server / Port Forwarding" on the top of the page

4
Enable Port Forwarding by selecting "Yes"

5
Under "Port Forwarding List (Max Limit : 32)" enter

Service Name: HTTP
Source IP:
Port Range: 80
Local IP: The IP of the computer cFos Personal Net is running on
Local Port: 80
Protocol: TCP

6
Press the "+" button to add the rule

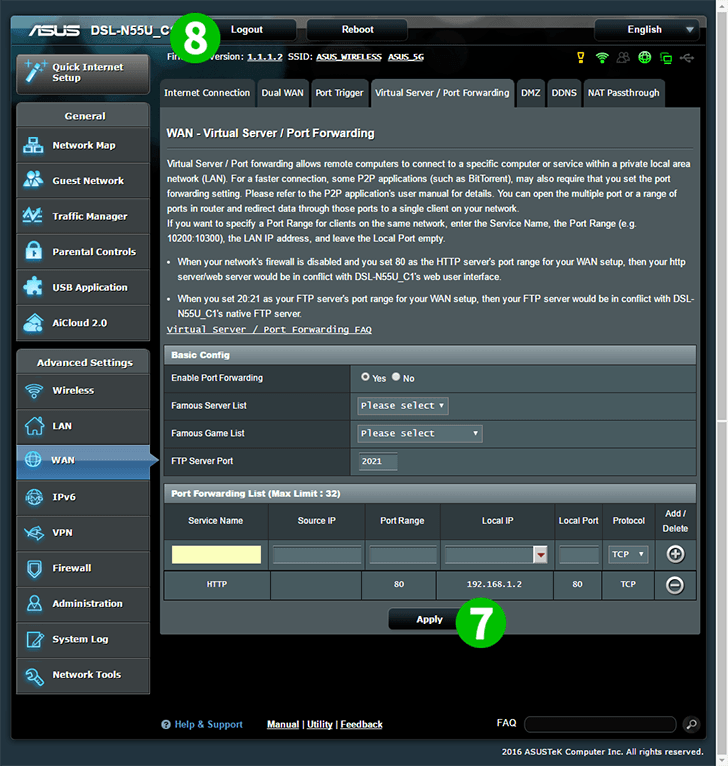

ASUS DSL-N55U_C1 Steps 7-8

7
Press "Apply" button to save the rule

8
On the top of the screen, press "Logout" to sign out from the router



Port forwarding is now configured for your computer!
