Enable port forwarding for the ASUS RT N56U

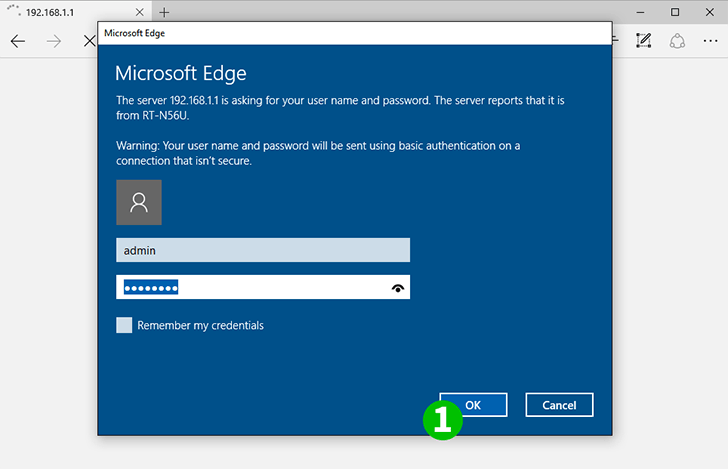

ASUS RT N56U Step 1

1
Login to your ASUS RT-N56U with a username and password (default username/password = admin)



ASUS RT N56U Steps 2-4

2
Under a "Advanced Settings" select "WAN" on the left menu

3
Select the tab "Port Fowarding" on the top of the page

4
Enable Port Forwarding by clicking "Enable Manual Port Forwarding?" button



ASUS RT N56U Steps 5-6

5
Under "Manual Port Forwarding List" enter

Service Name: HTTP
Source IP:
Port Range: 80
Local IP: The ip of the computer cFos Personal Net is running on
Local Port: 80
Protocol: TCP

6
Press the "+" button to add the rule

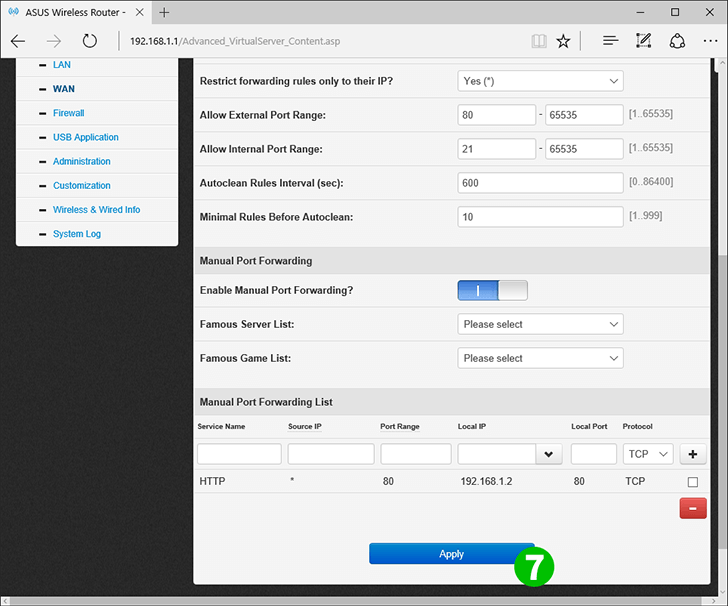

ASUS RT N56U Step 7

7
Press "Apply" button to save the rule

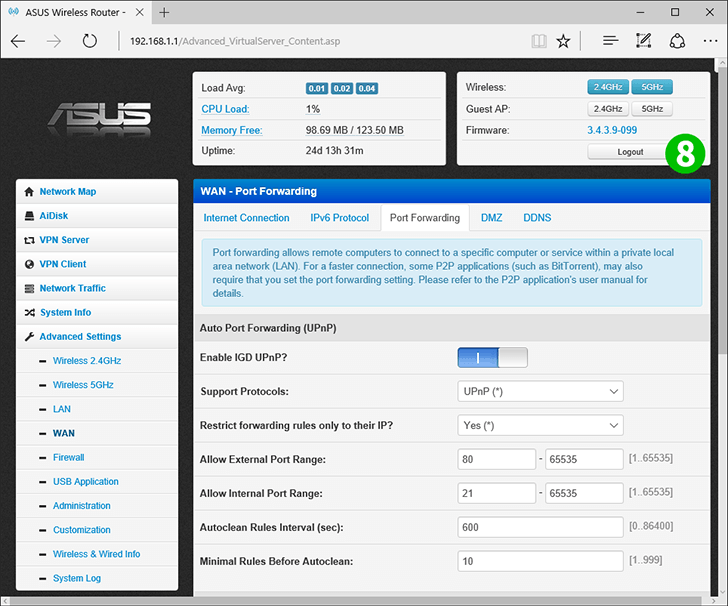

ASUS RT N56U Step 8

8
On the top of the screen, press "Logout" to sign out from the router



Port forwarding is now configured for your computer!
