Enable port forwarding for the D-Link DIR-605LW

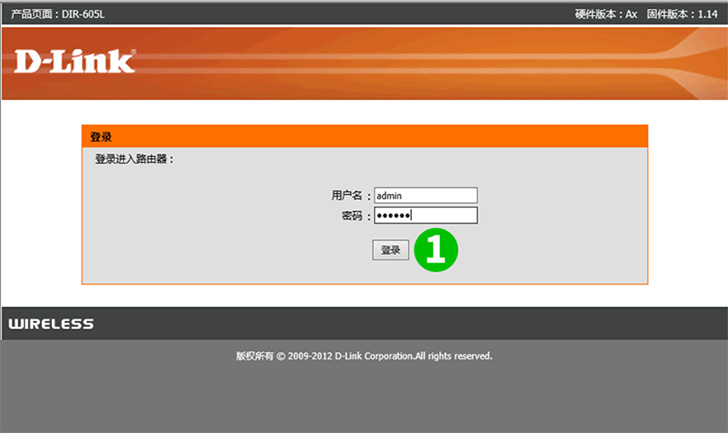

D-Link DIR-605LW Step 1

1
Use your username and password to login the router interface (default IP: 192.168.0.1, default user name: admin, no password). After successful login, click "Set" or "Advanced Network Setup" to enter the main menu

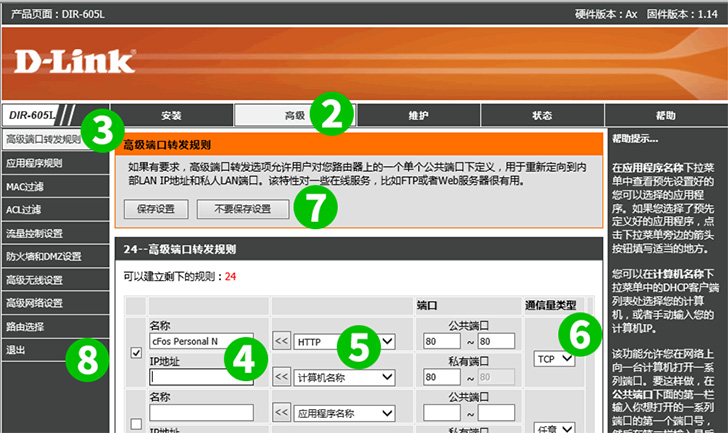

D-Link DIR-605LW Step 2-8

2
Click on "Advanced"

3
Click on "Advanced Port Forwarding Rules"

4
Enter a name in the "Name" field and the IP address of the computer running cFos Personal Net in the field "IP Address"

5
Select type "HTTP" and public port "80"

6
Select the traffic type "TCP"

7
Click on "Save Settings"

8
Finally click on "Exit" at the left



Port forwarding is now configured for your computer!
