Enable port forwarding for the D-Link DIR-818LW

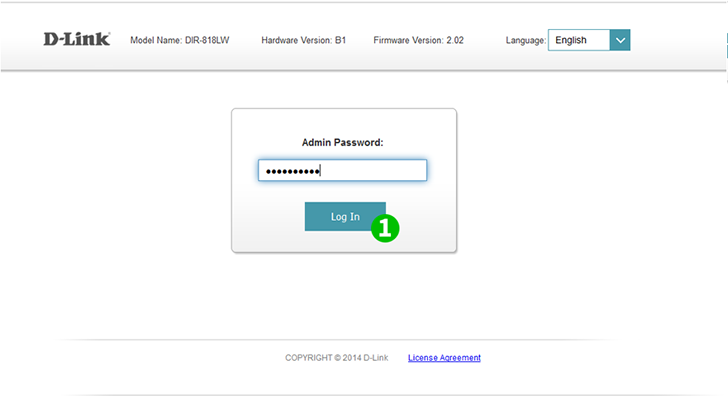

D-Link DIR-818LW Step 1

1
Log into your router with your username and password (default IP: 192.168.0.1 - default username: admin password: at the bottom of the router)

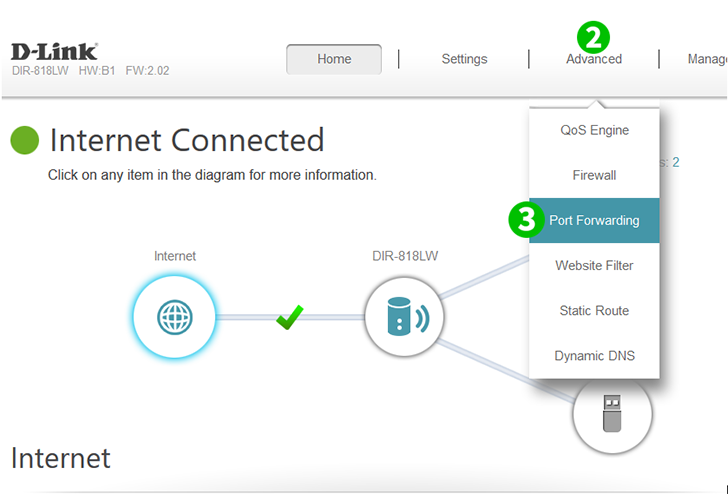

D-Link DIR-818LW Steps 2-3

2
Click on "Advanced" in the main menu on the top

3
Click on "Port Forwarding" from the dropdown menu

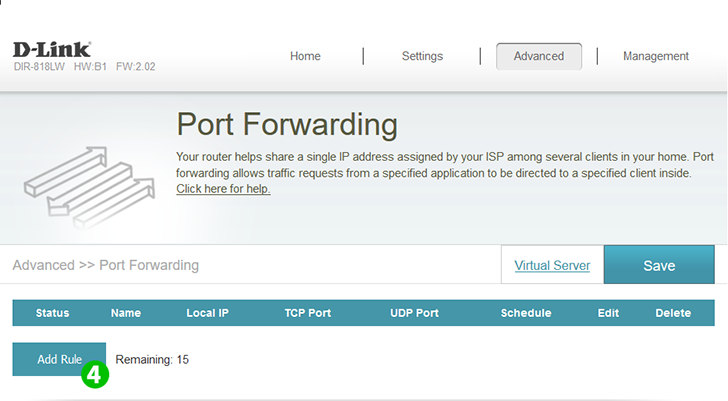

D-Link DIR-818LW Step 4

4
Click on "Add Rule" bottom left corner

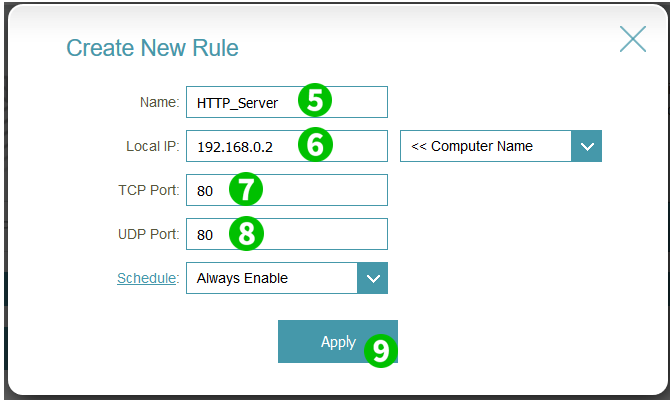

D-Link DIR-818LW Steps 5-9

5
Enter the "Name" of the rule

6
Enter the IP of the computer cFos Personal Net is running on

7
Enter the TCP port number of the port forwarding service that you want (80)

8
Enter the UDP port number of the port forwarding service that you want (80)

9
Click on the "Apply" button

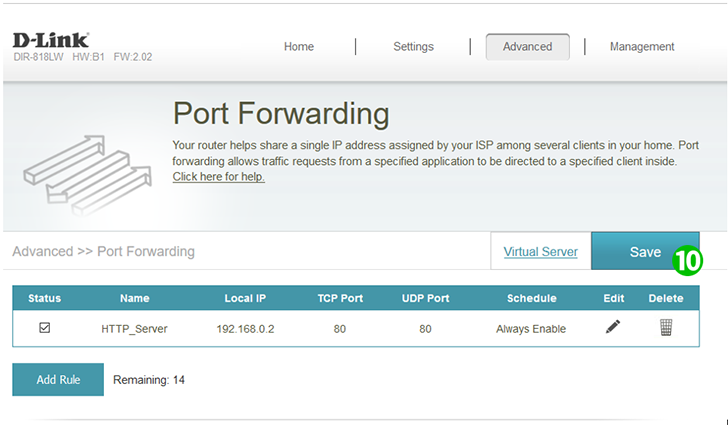

D-Link DIR-818LW Step 10

10
Click on the "Save" button



Port forwarding is now configured for your computer!
