Enable port forwarding for the Mikrotik MIKROTIK RB951G-2HnD


Mikrotik MIKROTIK RB951G-2HnD Step 1

1
Log in the router using your user name and password (Default-IP: 192.168.88.1, Login: admin, password: none)



Mikrotik MIKROTIK RB951G-2HnD Steps 2-5

2
Click "IP"

3
Click "Firewall"

4
Click "NAT"

5
Click button "Add New" to add new rule



Mikrotik MIKROTIK RB951G-2HnD Steps 6-9

6
Chain: dstnat

7
Protocol: tcp

8
Dst. Port: 80

9
In. Interface: ether1-gateway (one of an interface on the router)



Mikrotik MIKROTIK RB951G-2HnD Steps 10-13

10
Scroll page down to "Action" field

11
Action : dst-nat

12
To Addresses: 192.168.88.253 (IP address of the computer cFos Personal Net is running on)

13
To Ports: 80

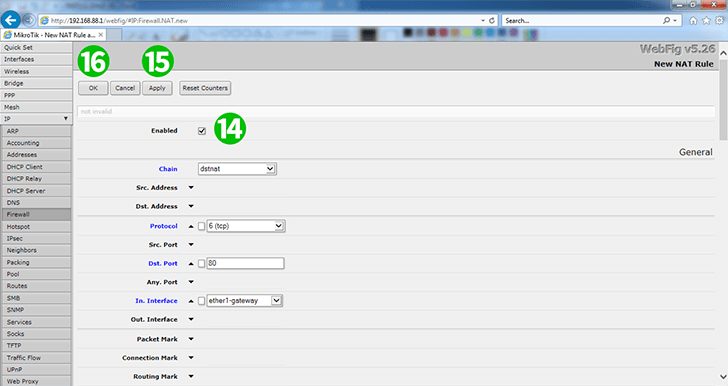

Mikrotik MIKROTIK RB951G-2HnD Steps 14-16

14
Scroll back on top of the page and check if the rule enabled (by default it is Enabled)

15
Click "Apply"

16
Click "OK" and then logoff from the router



Port forwarding is now configured for your computer!
