Enable port forwarding for the TP-Link Archer C1200

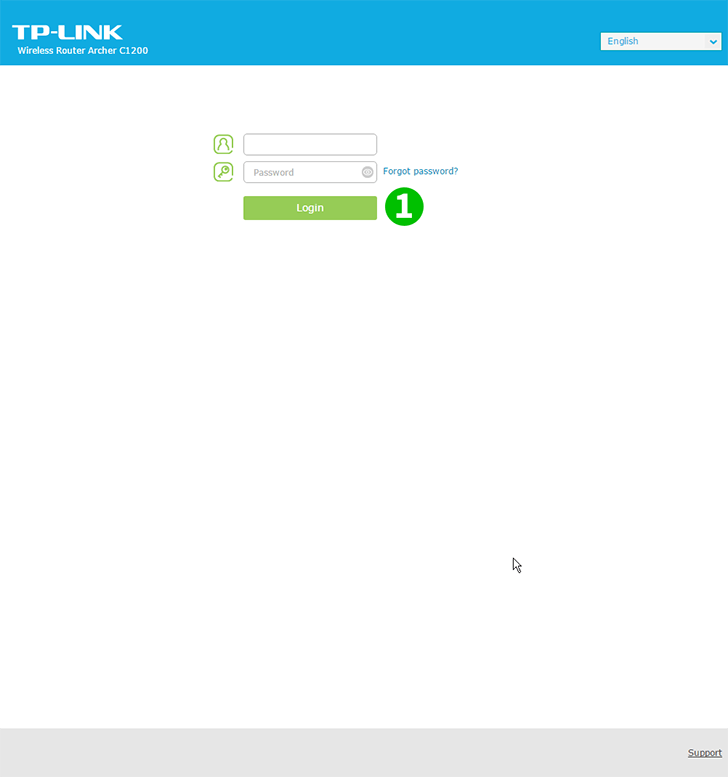

TP-Link Archer C1200 Step 1

1
Enter the router. If you have never logged in, you can login with the default data: Enter your browser: http://192.168.0.1 (in some cases http://192.168.1.1), username: admin, password: admin

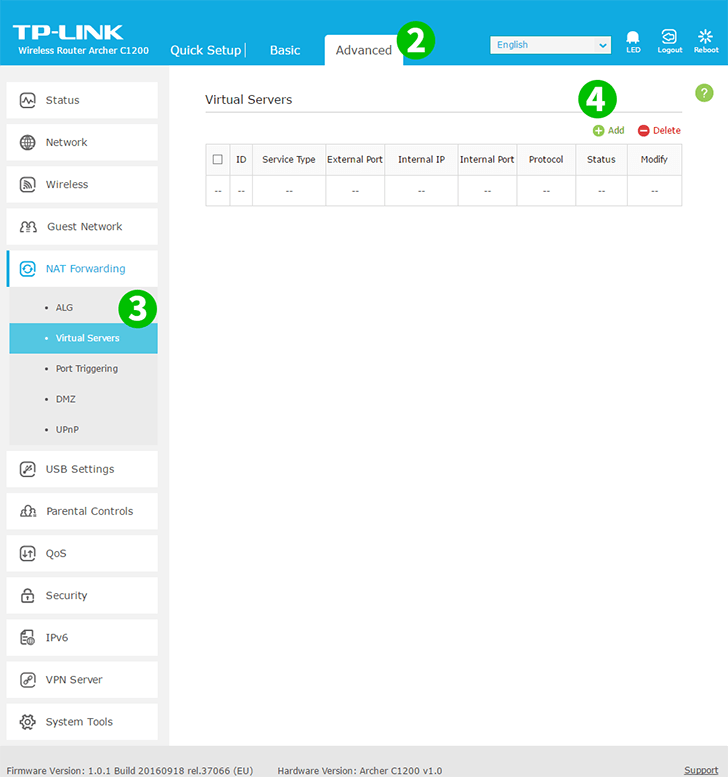

TP-Link Archer C1200 Steps 2-4

2
Select the "Advanced" tab above the center

3
In the left menu, select "NAT Forwarding" and then "Virtual Servers"

4
Click on the "Add" button above right of table



TP-Link Archer C1200 Steps 5-8

5
Click "View Existing Service" and select "HTTP". The External Port and the Internal Port are automatically filled (80)

6
Select TCP on the "Protocol" drop-down

7
In the "Internal IP" box, type the IP address of the computer on which the cFos Personal Net is running. It is a good idea to set a static IP address for your computer

8
Click "OK"

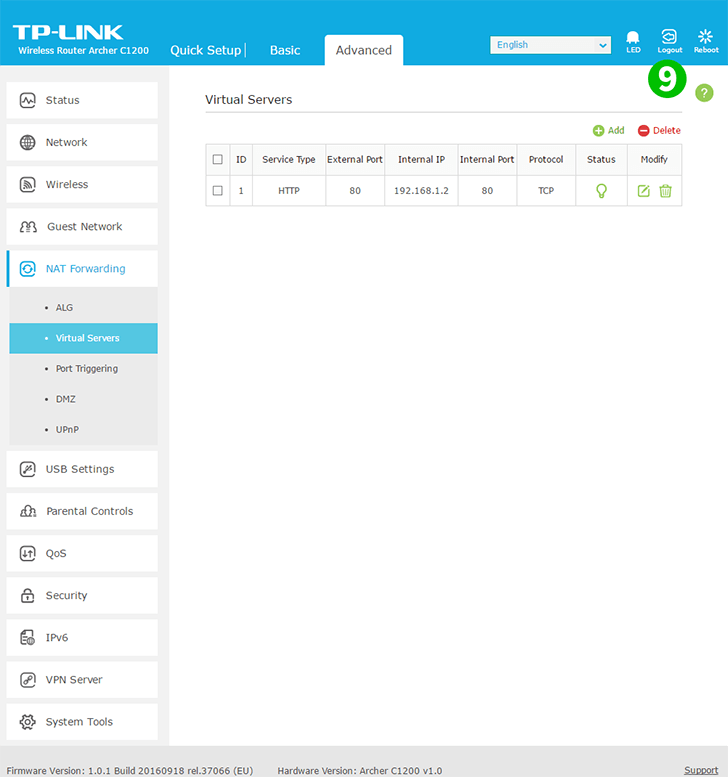

TP-Link Archer C1200 Step 9

9
Log out of the router using the "Logout" button (right side)



Port forwarding is now configured for your computer!
