Enable port forwarding for the ASUS DSL-N12U

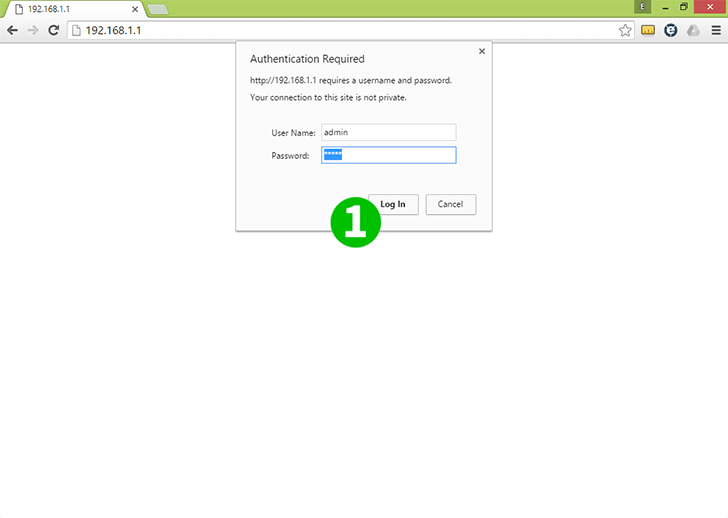

ASUS DSL-N12U Step 1

1
Login to your ASUS DSL-N12U with a username and password (default username/password = admin)

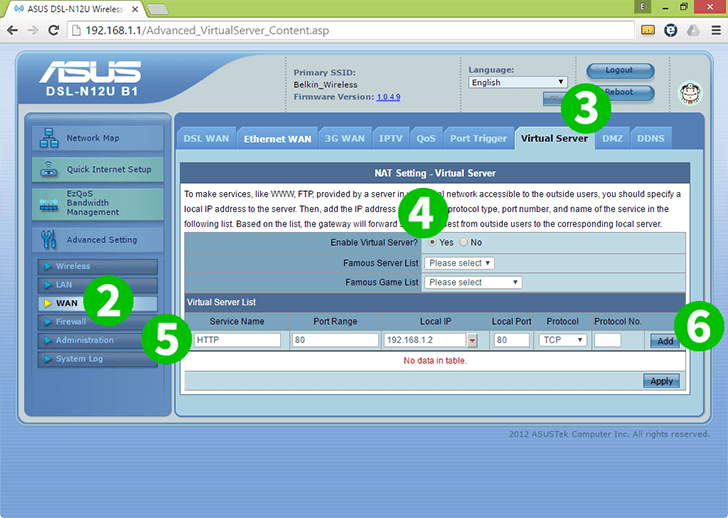

ASUS DSL-N12U Steps 2-6

2
Under a "Advanced Settings" select "WAN" on the left menu

3
Select the tab "Virtual Server" on the top of the page

4
Enable Virtual Server by selecting "Yes"

5
Under "Virtual Server List" enter

Service Name: HTTP
Source IP:
Port Range: 80
Local IP: The IP of the computer cFos Personal Net is running on
Local Port: 80
Protocol: TCP

6
Press the "Add" button to add the rule

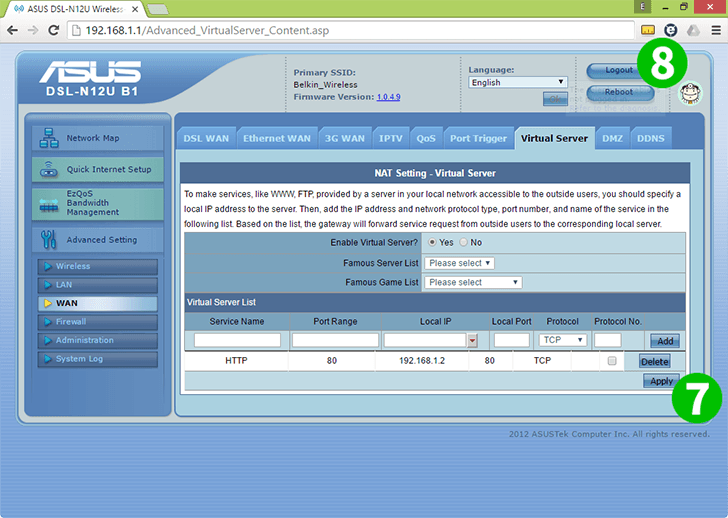

ASUS DSL-N12U Steps 7-8

7
Press "Apply" button to save the rule

8
On the top of the screen, press "Logout" to sign out from the router



Port forwarding is now configured for your computer!
