» Enable port forwarding for the 2Wire 2701HG-G

Enable port forwarding for the 2Wire 2701HG-G


2Wire 2701HG-G Step 1

1
Open the router management page in a browser



2Wire 2701HG-G Step 2

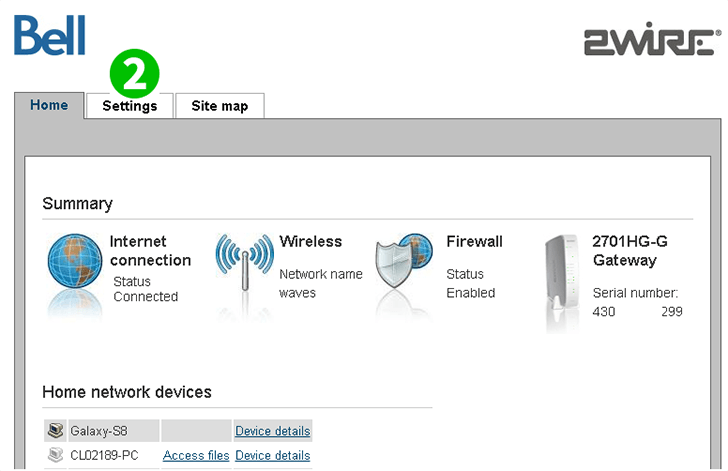

2
Open the "Settings" tab



2Wire 2701HG-G Steps 3-4

3
Open the "Firewall" tab

4
Open the "Application support" dialog in the Firewall tab



2Wire 2701HG-G Steps 5-6

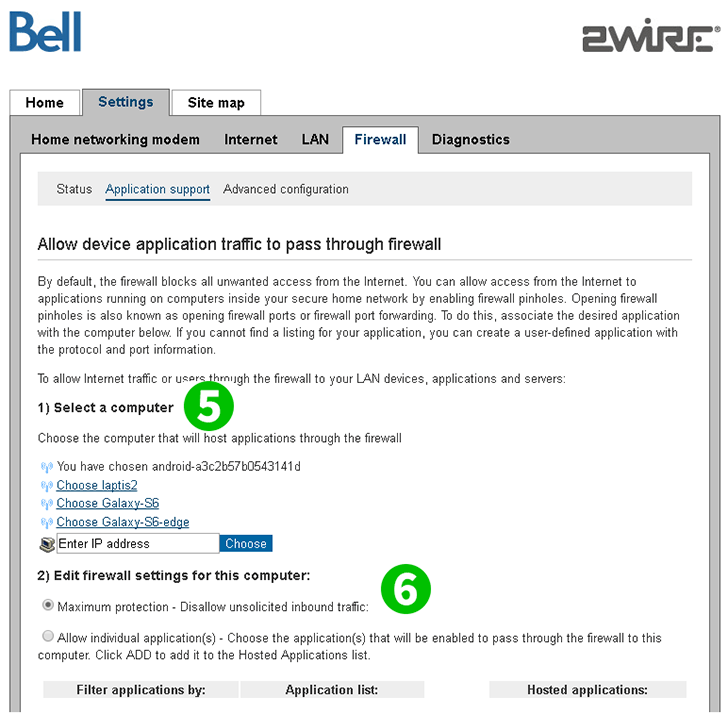

5
Select the computer cFos Personal Net is running on. Note: The computer must be connected to the router

6
Select the option to allow individual applications



2Wire 2701HG-G Steps 7-8

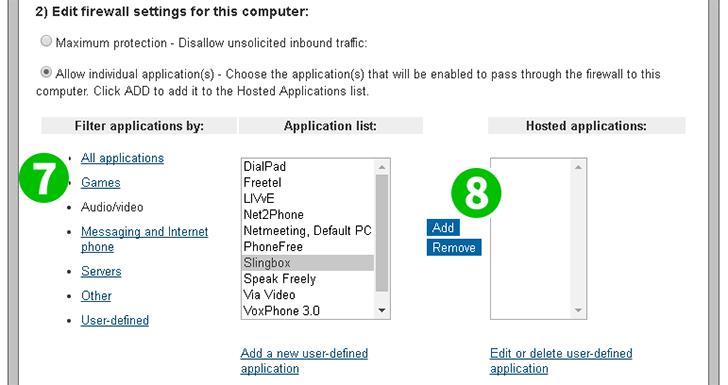

7
Select the application to use port forwarding for

8
Click on the "Add" button to add port forwarding for the application to the selected computer



2Wire 2701HG-G Steps 9-10

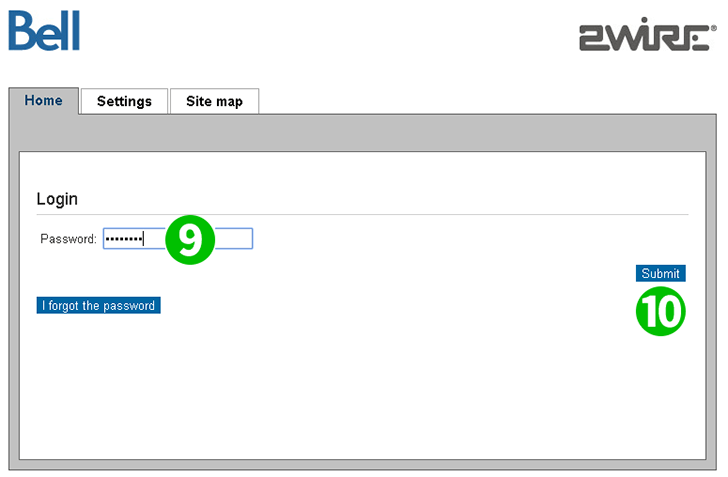

9
Enter the administrative password

10
Click the "Submit" button to save the setting



2Wire 2701HG-G Step 11

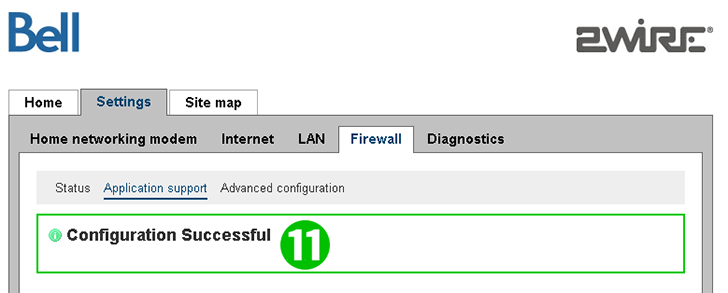

11
Confirm successful configuration



2Wire 2701HG-G Steps 12-13

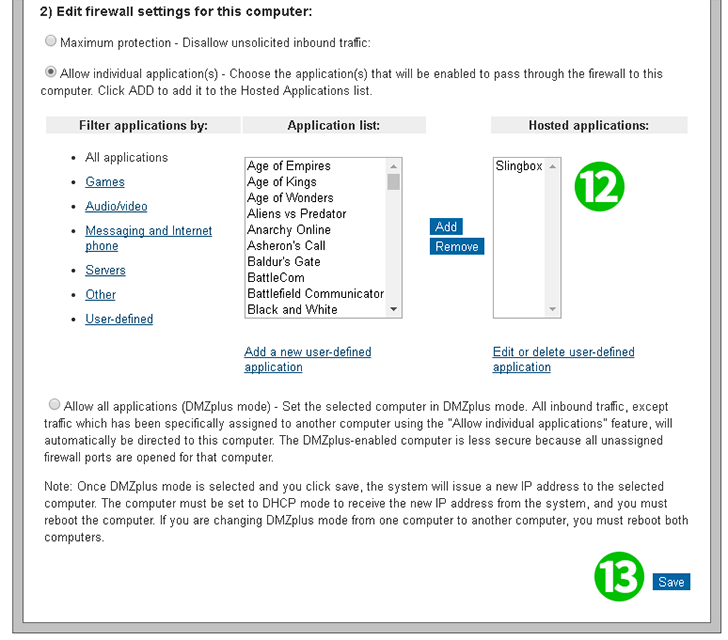

12
Confirm the application is listed

13
Save the configuration. Port forwarding is now setup



Port forwarding is now configured for your computer!
